Full Motorcycle Frame Jig Kit (Welding Jig / Fixture)

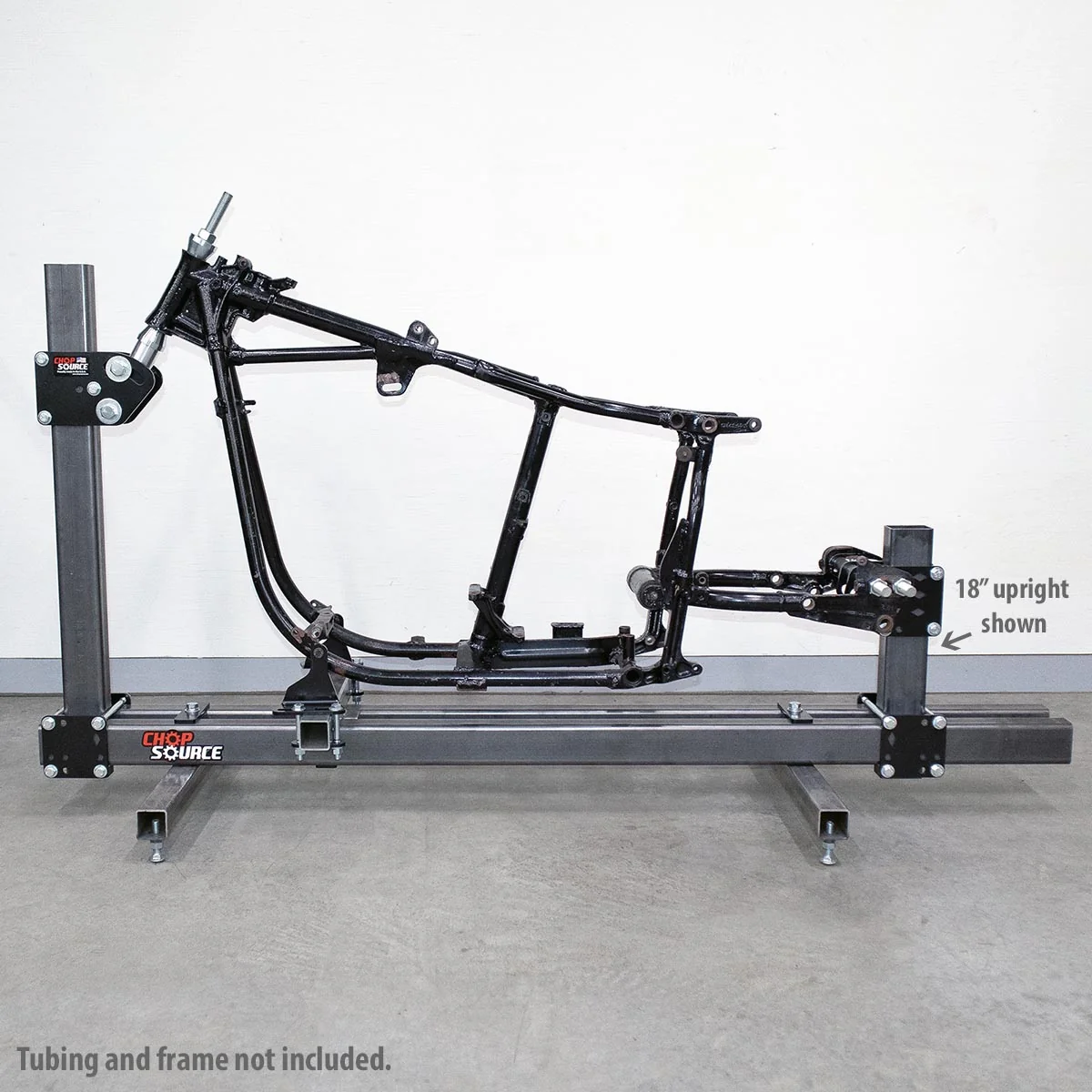

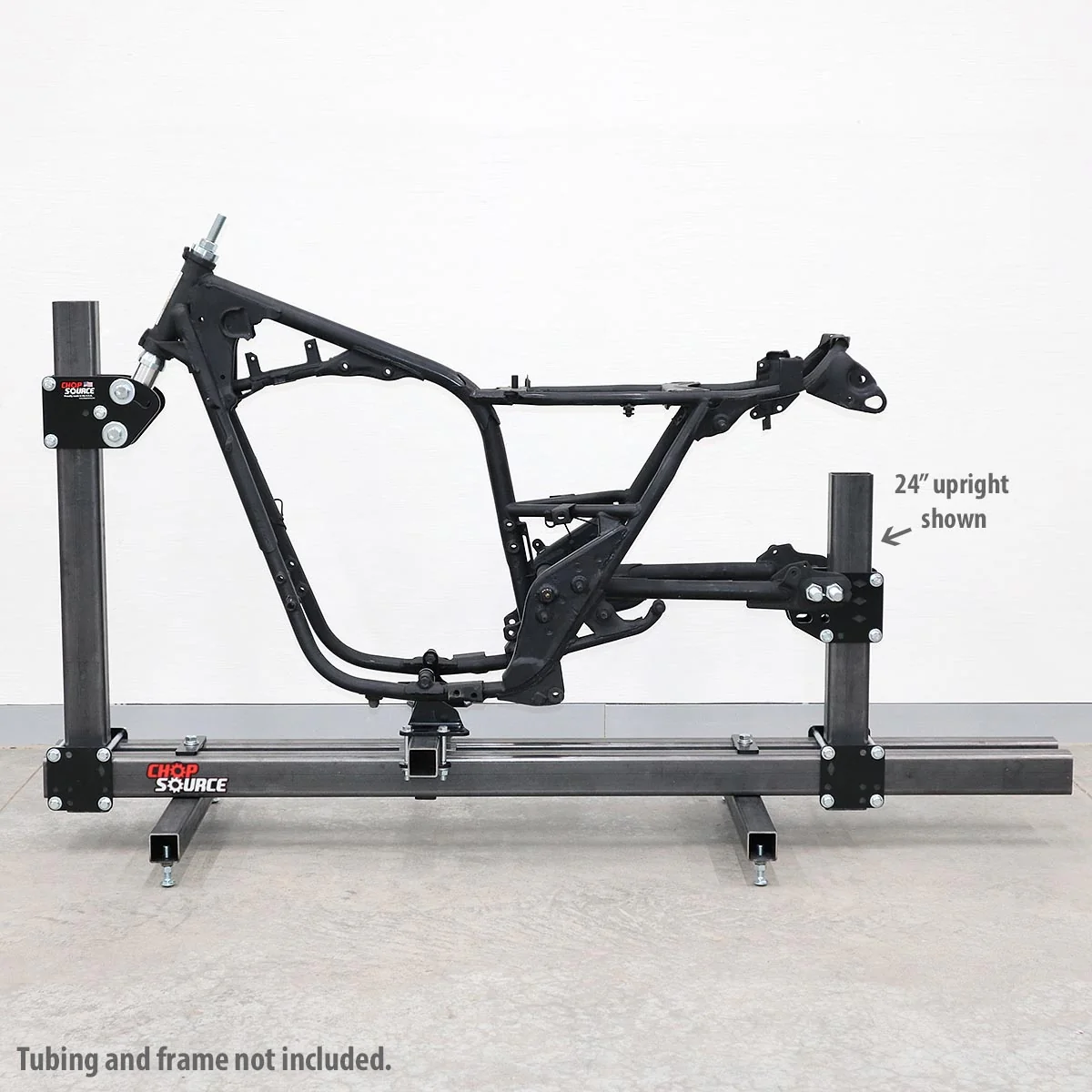

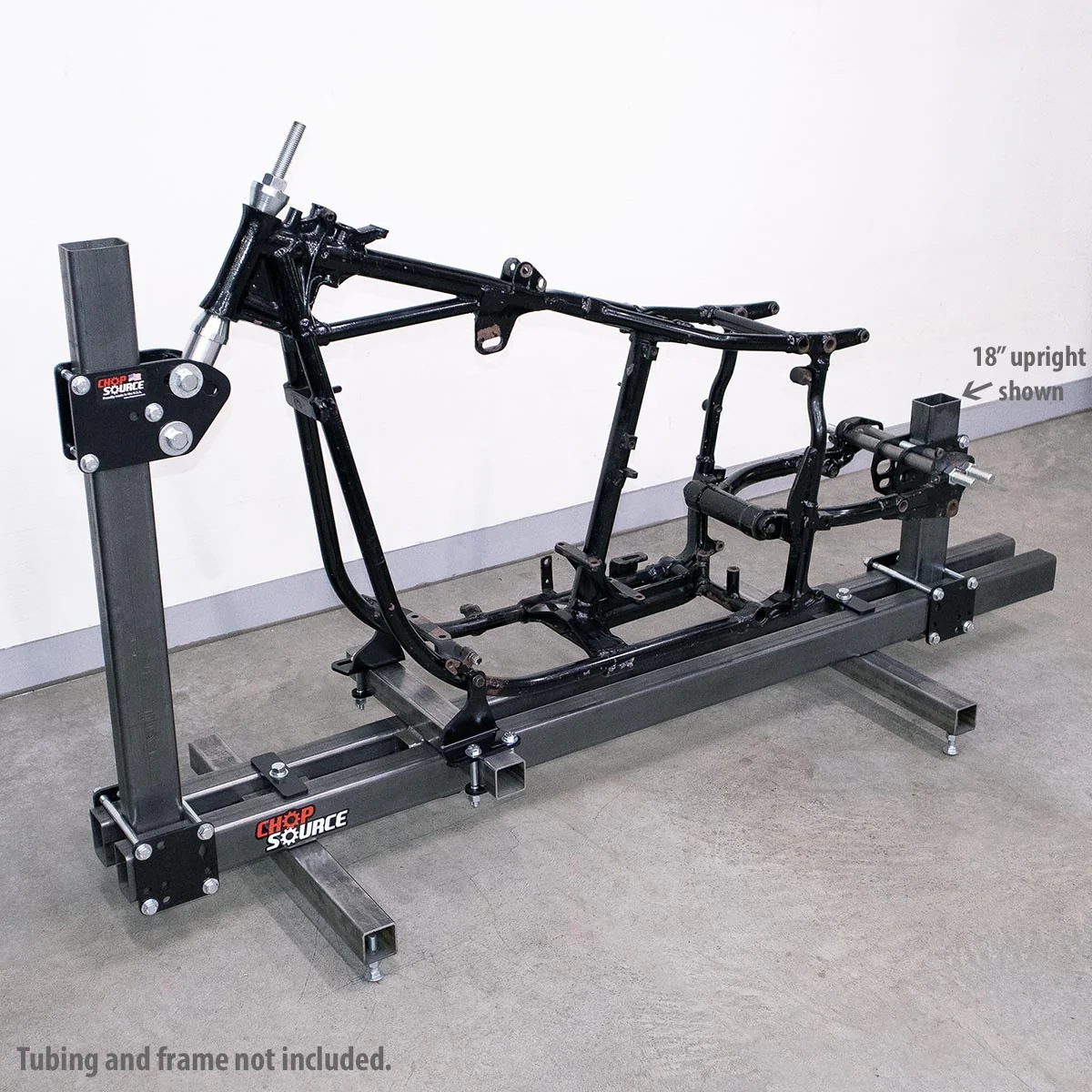

The Chop Source Full Frame Jig Kit includes all of the fixtures and hardware you need to get your motorcycle frame jig (welding jig) started. You need to supply 17' of 2"x3" (1/8" wall) tubing and 6.5' of 2"x2" (1/8" wall) tubing to assemble the jig as shown. See the assembly instructions for the tubing cut list and information on using all 2"x2" or metric tubing. Structural tubing can be found at your local metal supply shop or welding/fabricating shop. The frame jig kit bolts together, so you can easily reconfigure the jig or break it down for storage or transport. The neck fixture accommodates rakes from 15 degrees to 60 degrees.
All fixture plates in the Full Frame Jig Kit are laser cut from 1/4" mild steel and are powder coated black.
The Full Motorcycle Frame Jig Kit Includes:

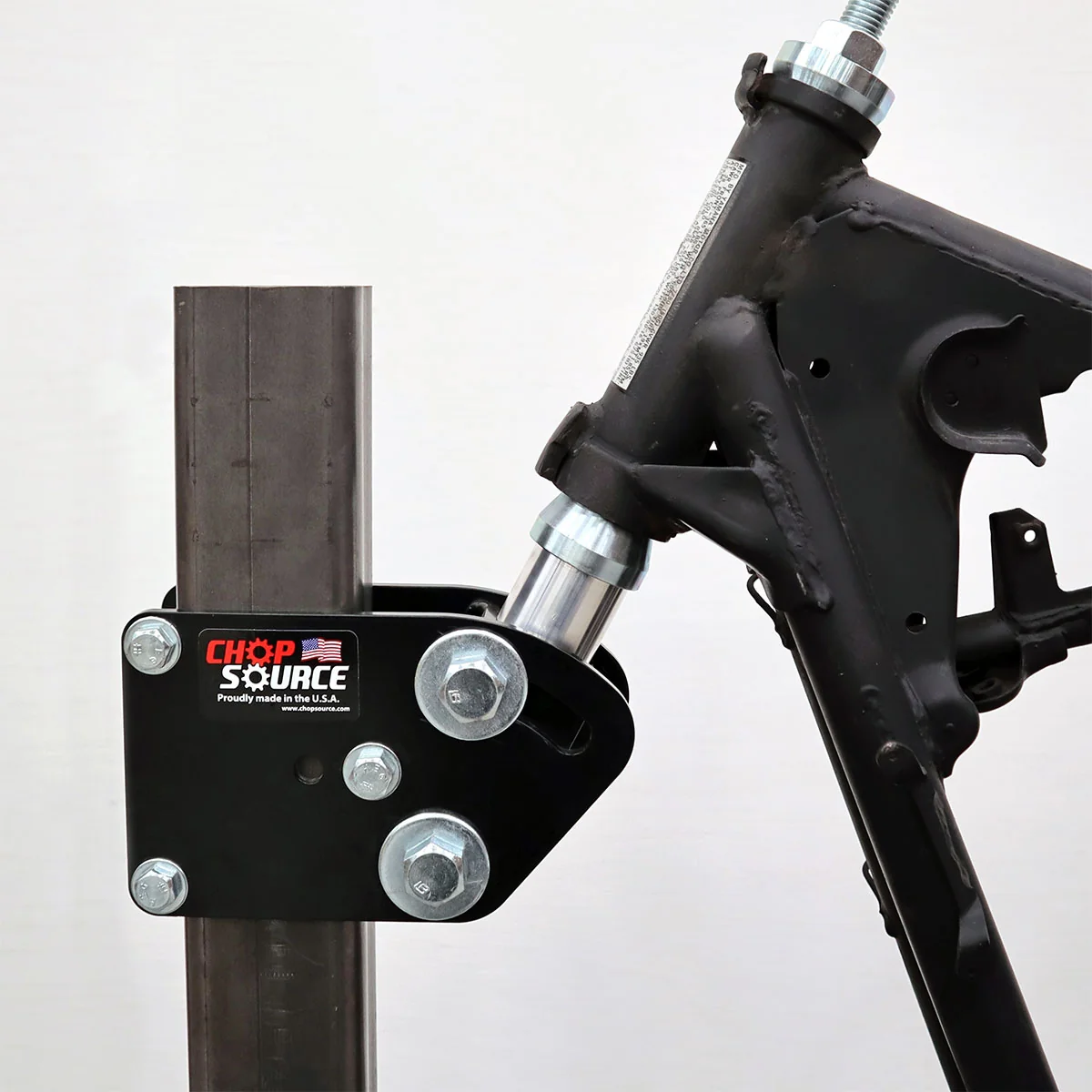

- Neck Fixture
- 1018 Mild Steel Neck Cones (upgrade to stainless steel cones for $22 USD)

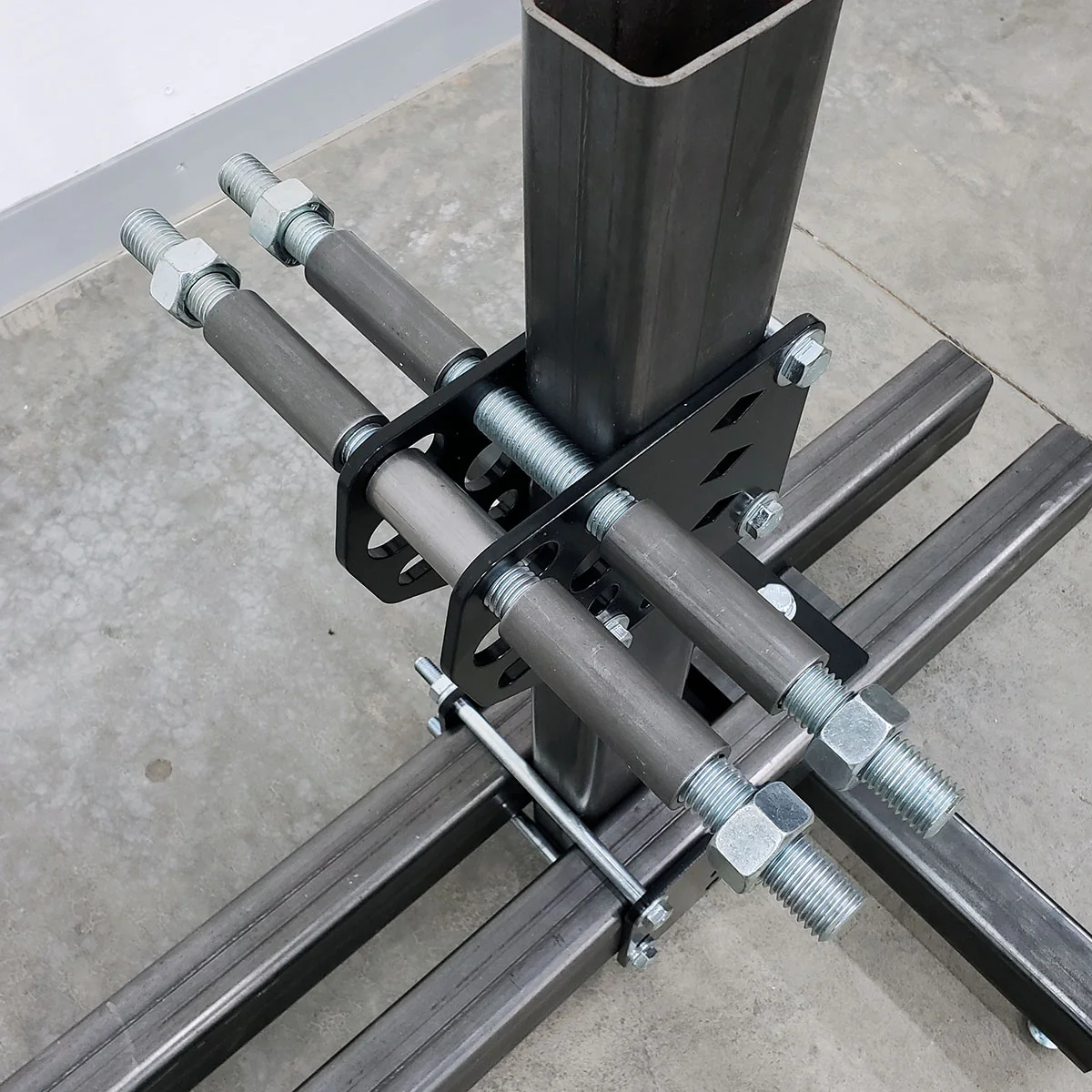

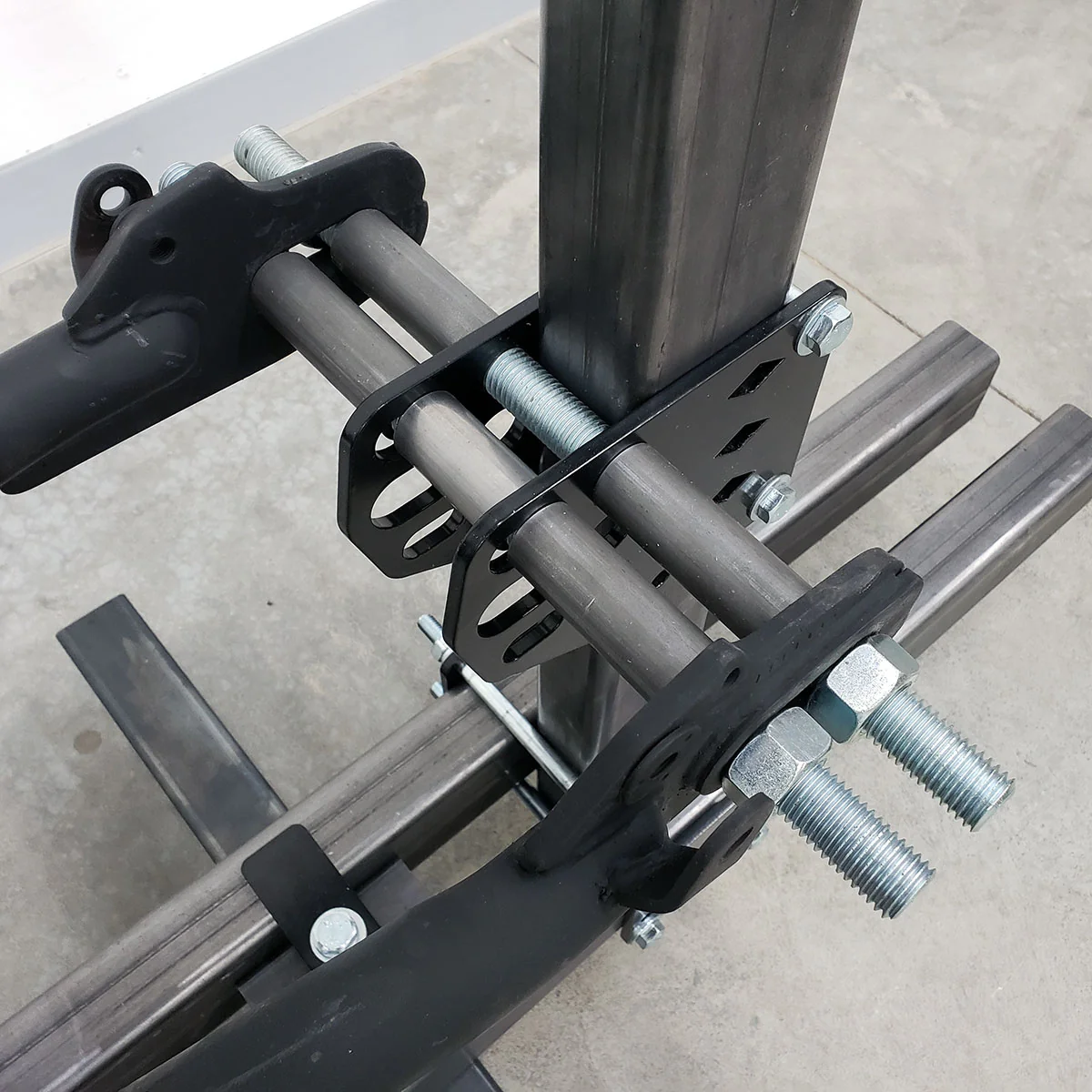

- Axle Plate Fixture

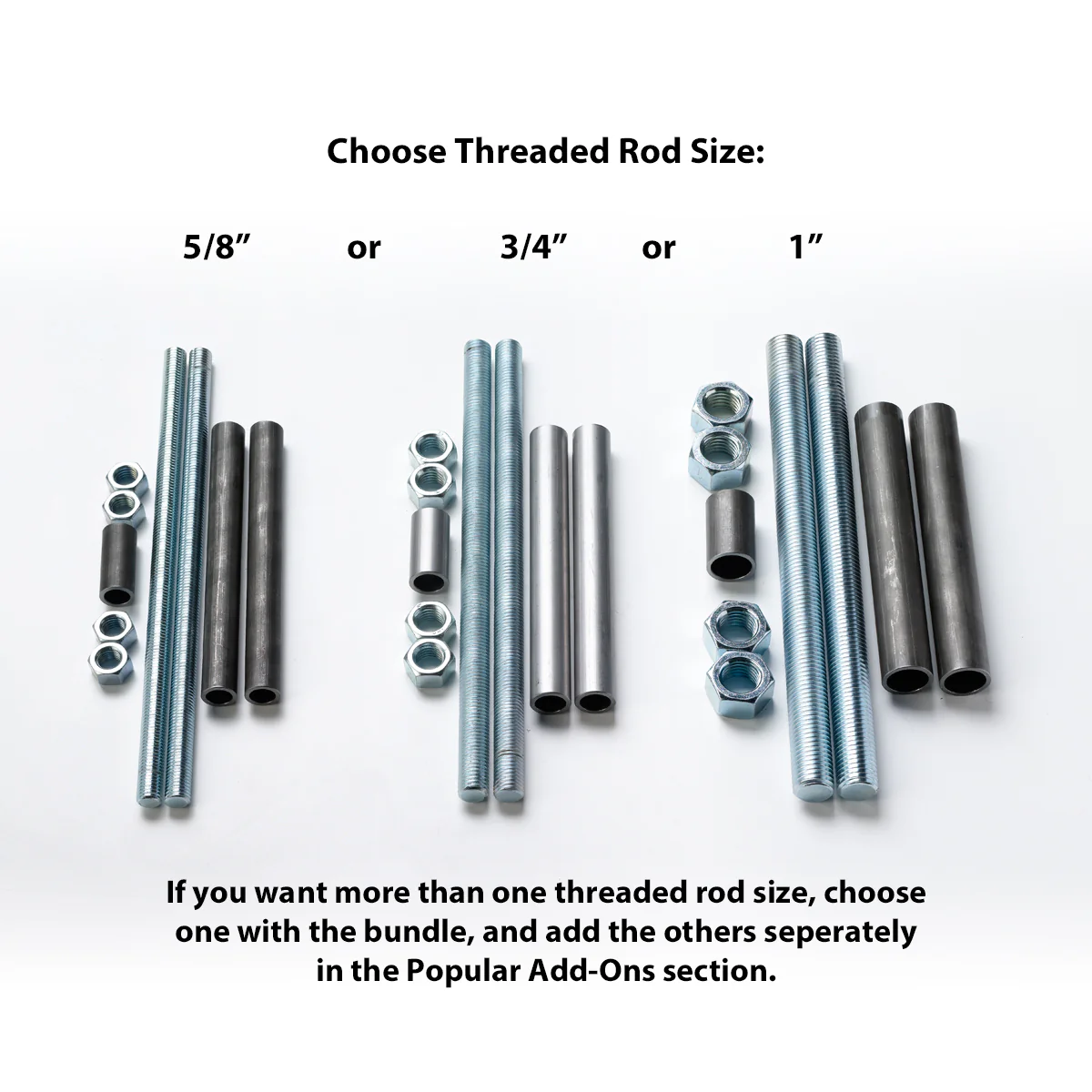

- 3/4" or 5/8" Threaded Rods and Spacers (1" size is +$18 USD)
- Adjustable Width Fixture

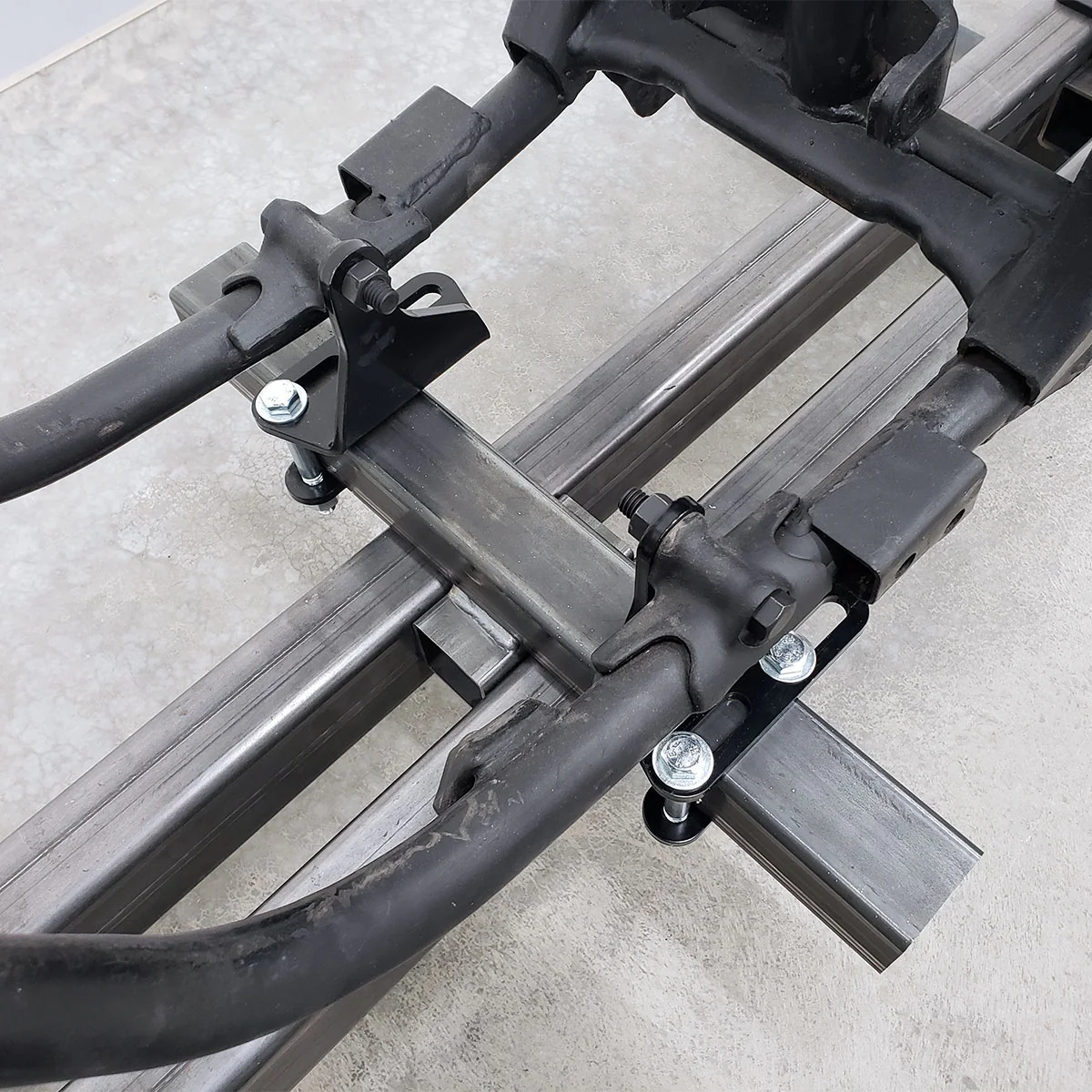

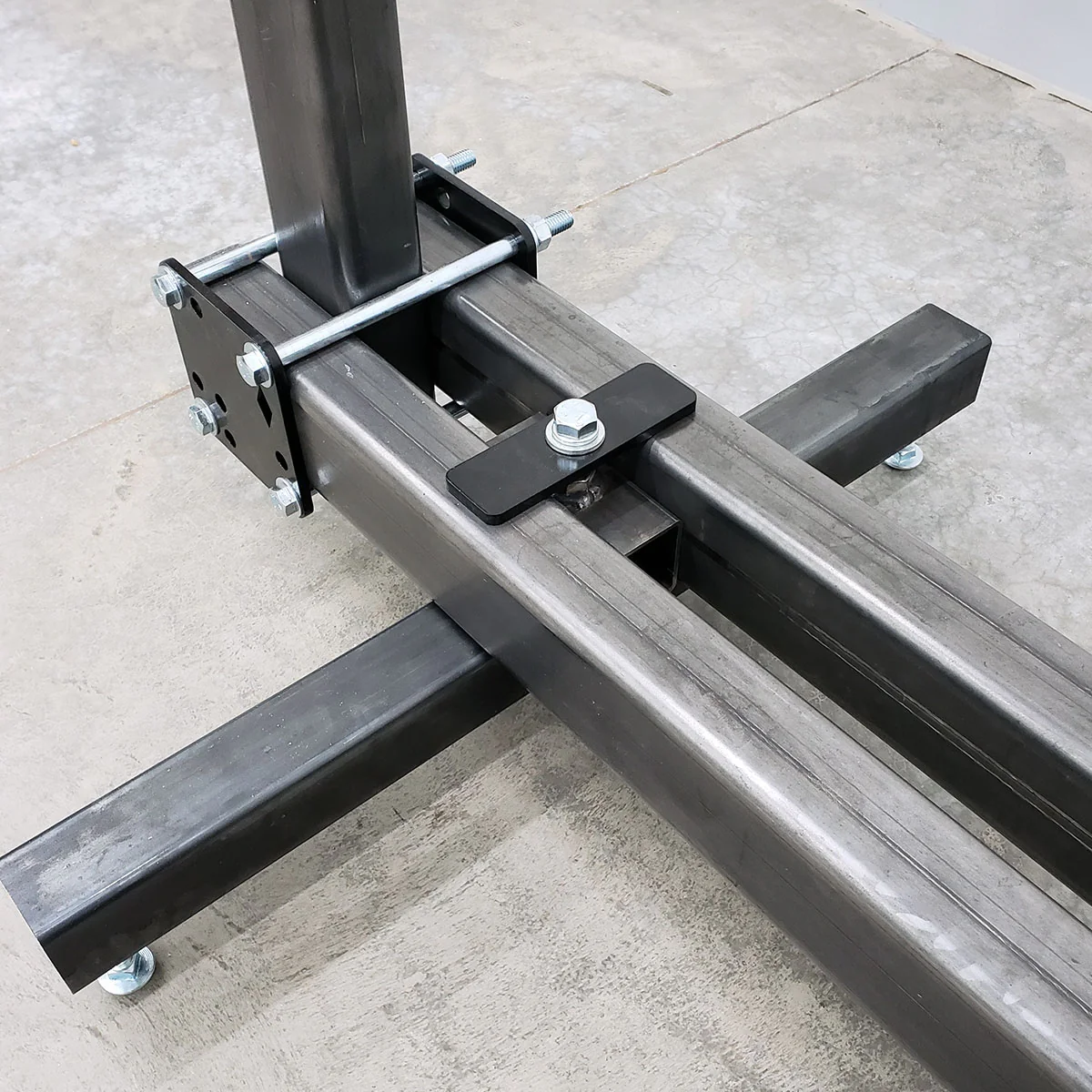

- Two Base Clamps
-

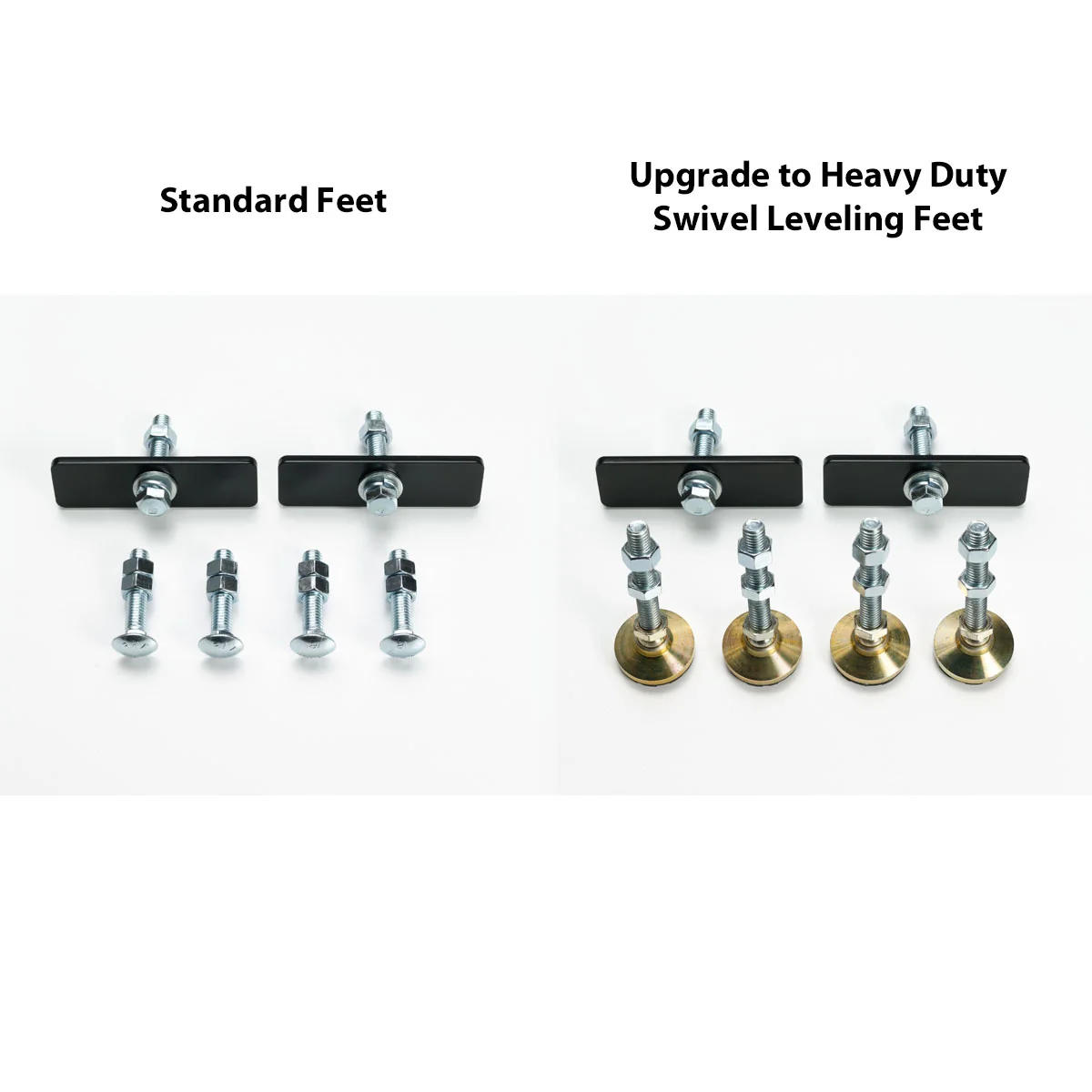

Feet Kit (upgrade to Swivel Leveling Feet for $40 USD)
MADE IN THE USA.
This bundle is our most popular product. About 25% of our customers upgrade the cones to stainless steel, about 30% upgrade to heavy-duty swivel leveling feet, and over 80% order the 3/4" threaded rods and spacers. About 40% of our customers order the Rotisserie Stand, either with the jig or later. If you need help deciding what to order, call or text 651-300-9575 or email [email protected]
This item ships free to the contiguous United States! We ship worldwide frequently, but shipping costs are high because our products are very heavy. Add the items you want to the shopping cart, then enter your address at checkout to display rates.
Download the Chop Source Motorcycle Frame Jig Plans / Assembly Instructions
The detailed instructions include additional photos, drawings, and a tubing cut list. Many builders find it helpful to review the assembly instructions before placing their order.
Motorcycle Frame Jig and Rotisserie Stand Assembly Video by Rusty Van Ranch
