Frame Jig Adjustable Width Fixture

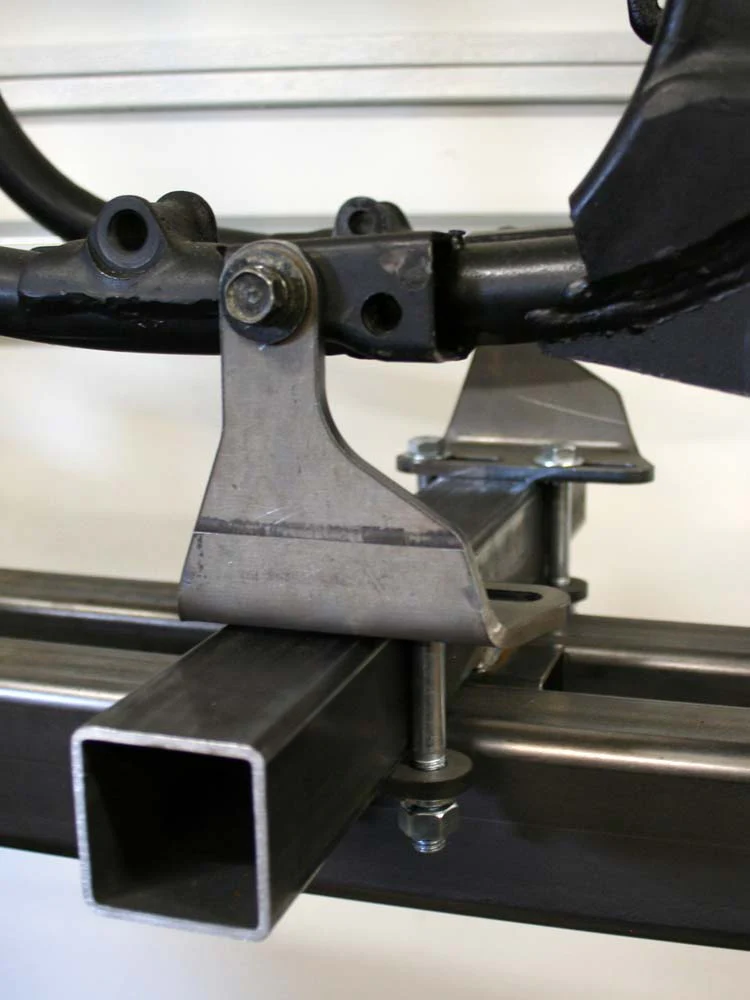

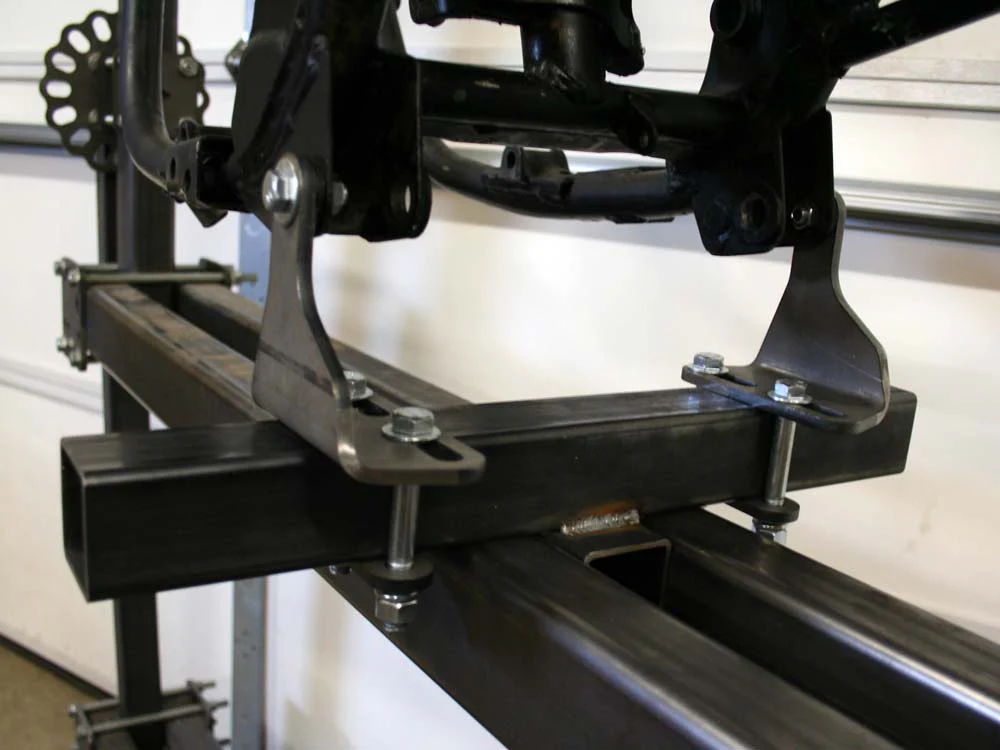

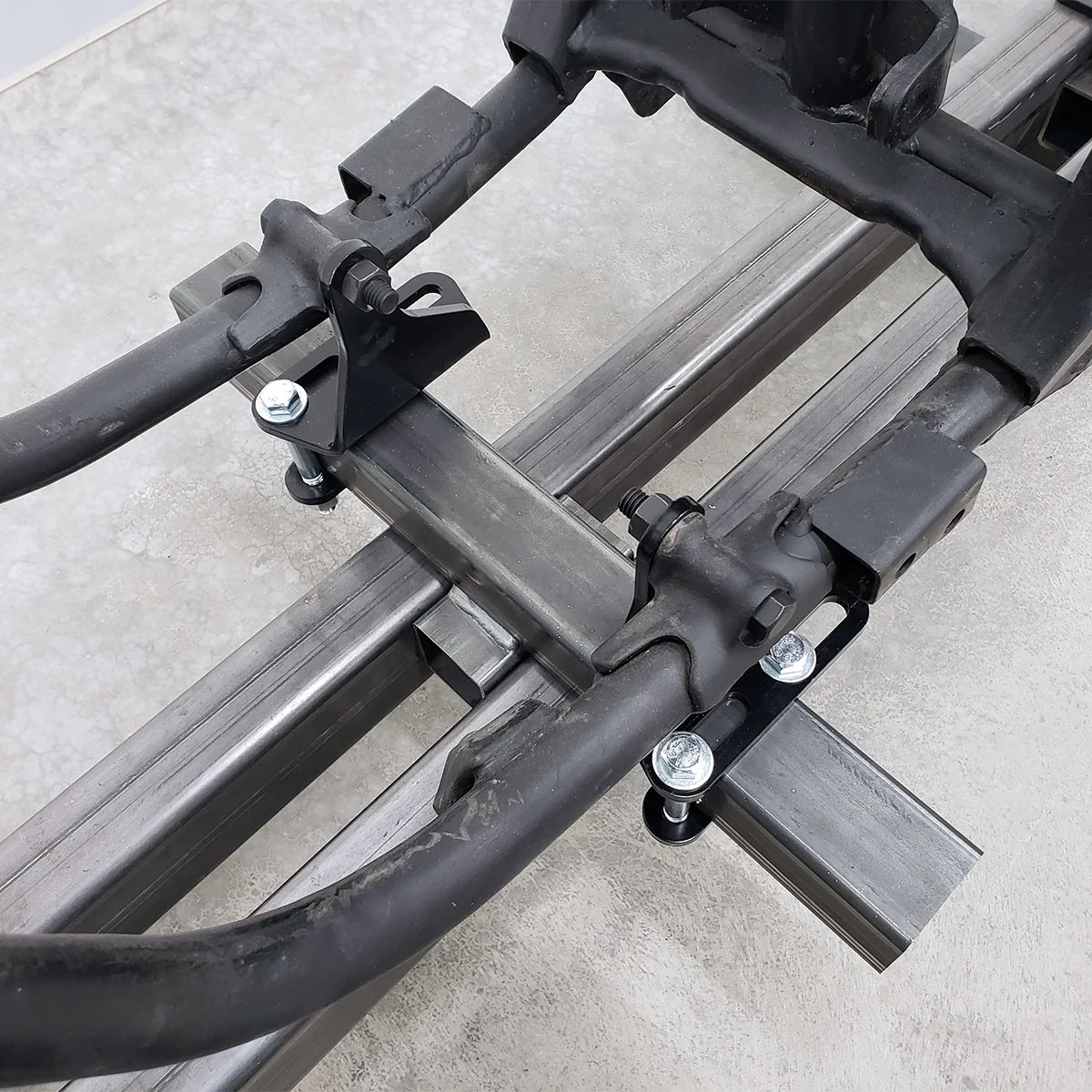

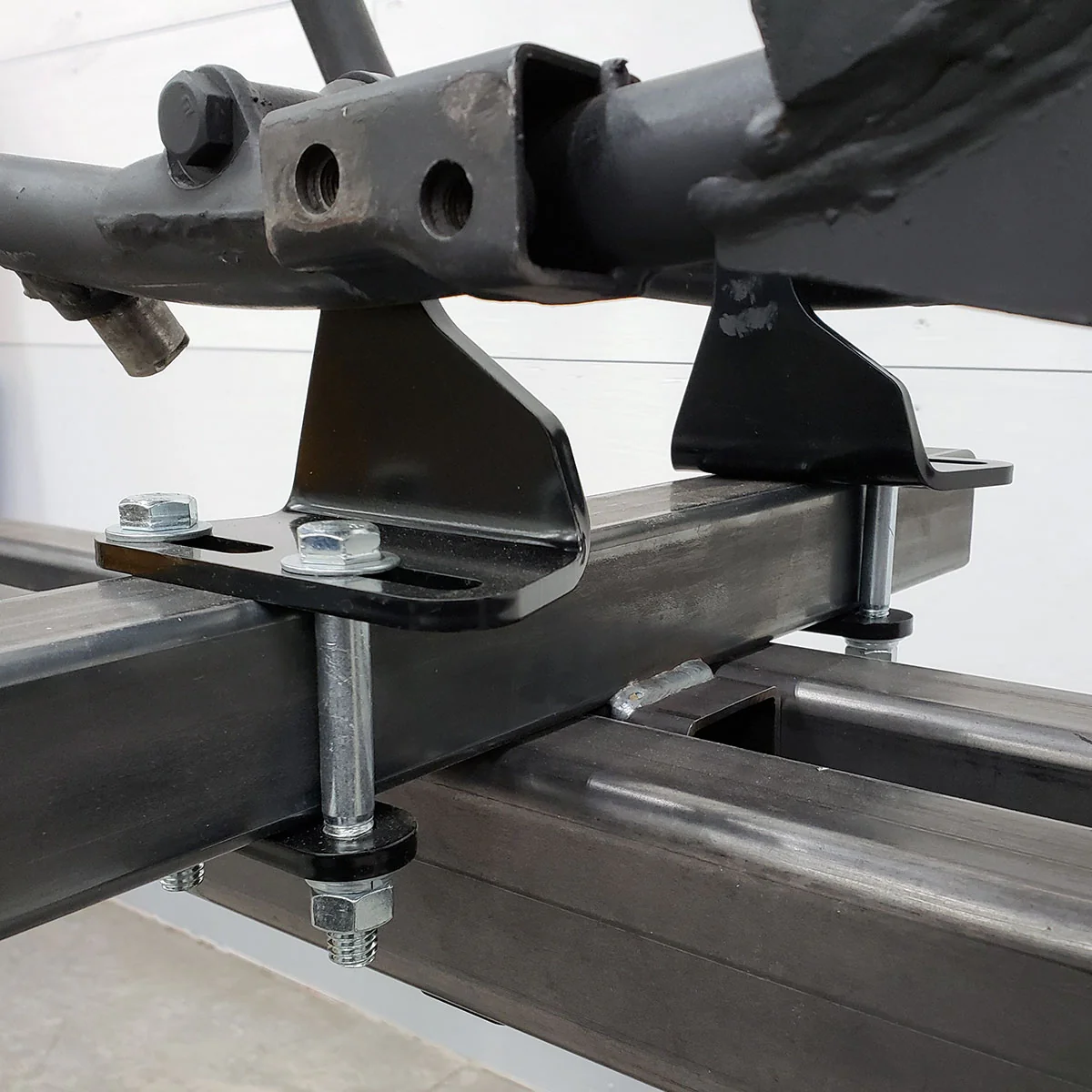

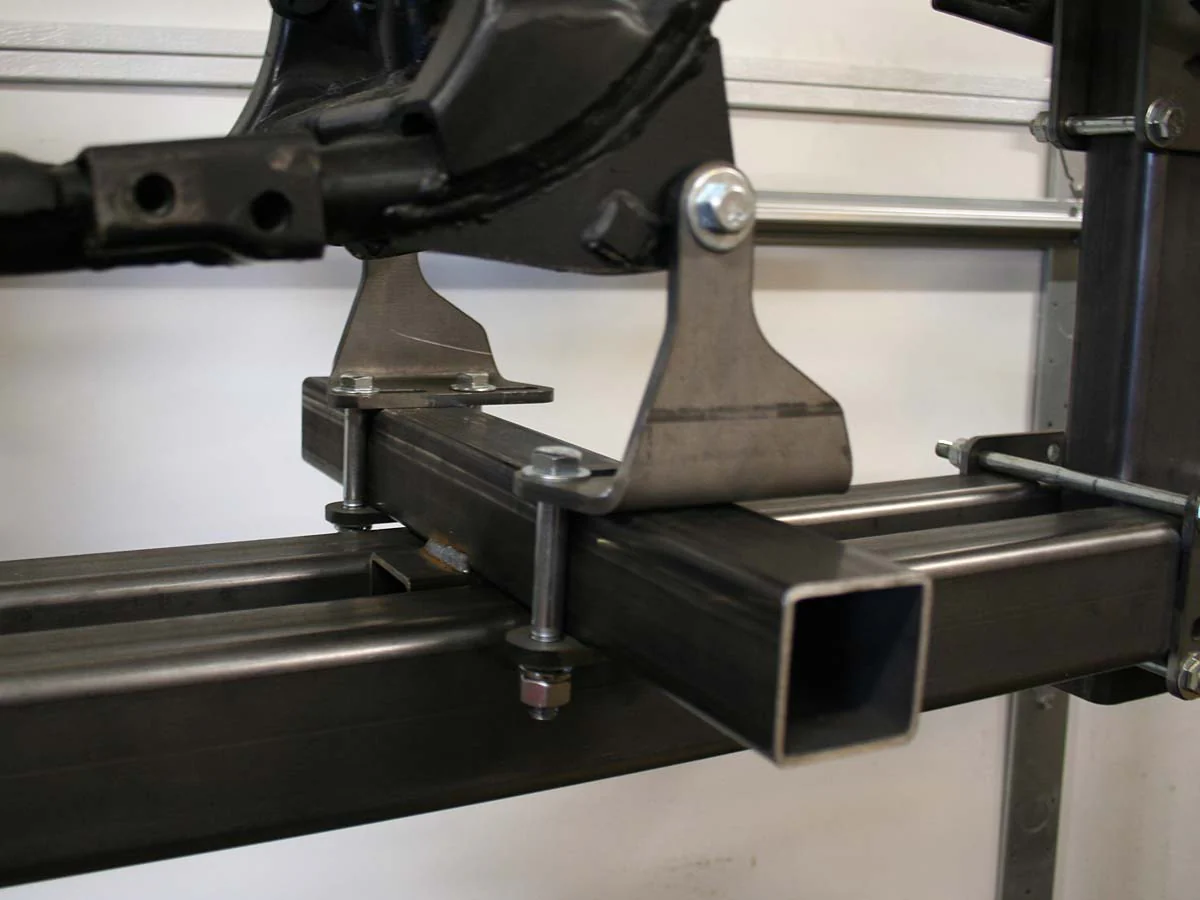

The Adjustable Width Fixture supports the lower rails of your frame. You may be able to bolt the adjustable brackets to the lower engine mounts, center stand mounts, exhaust mounts, control mounts, or other mounts on your frame.

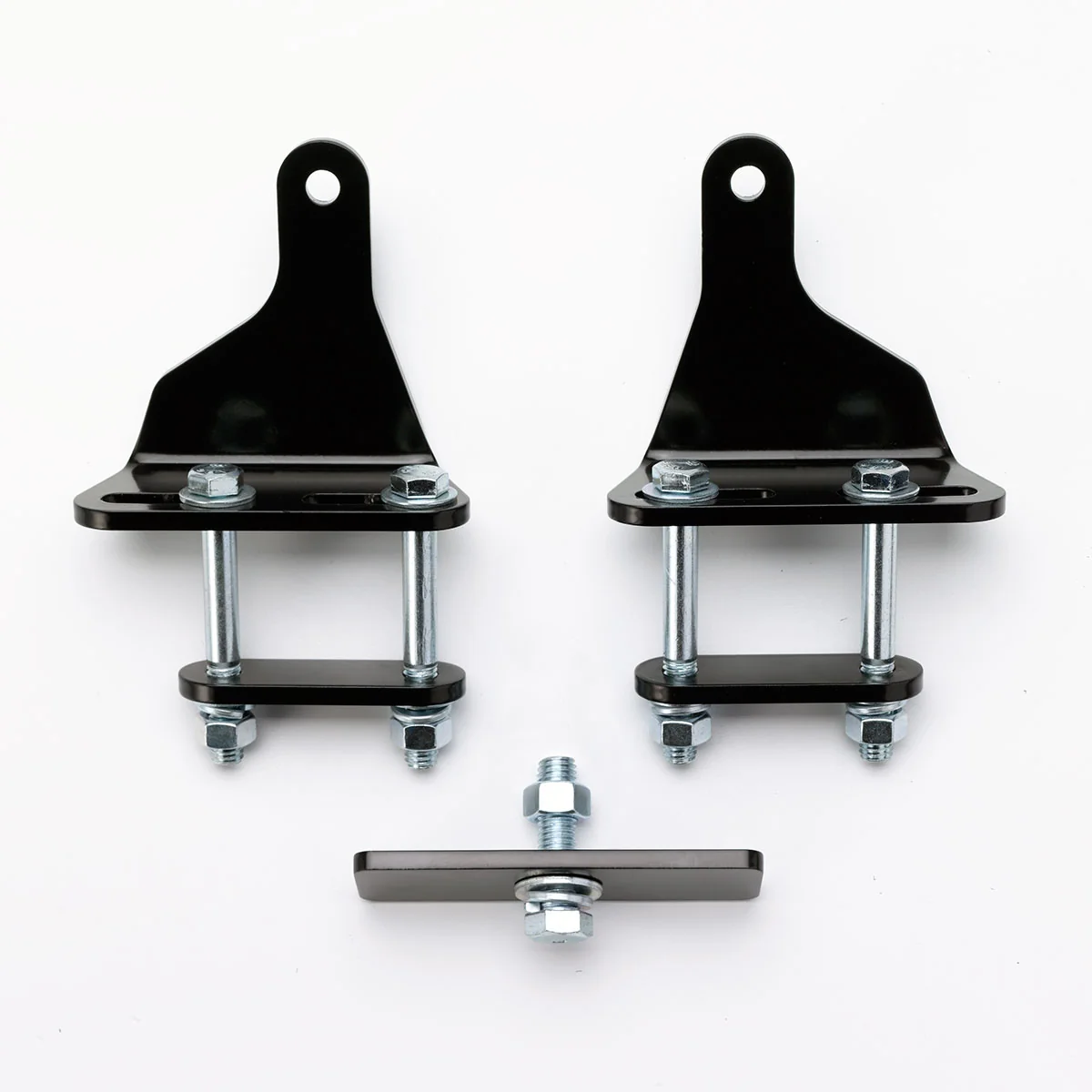

You will need to decide if this fixture will work for your needs. It comes with the plates and hardware shown in the first picture and works with 2"x2" tubing only (customer-supplied). The slots in the brackets allow them to offset 1.25" to one side of the centerline of the 2"x2" tube.

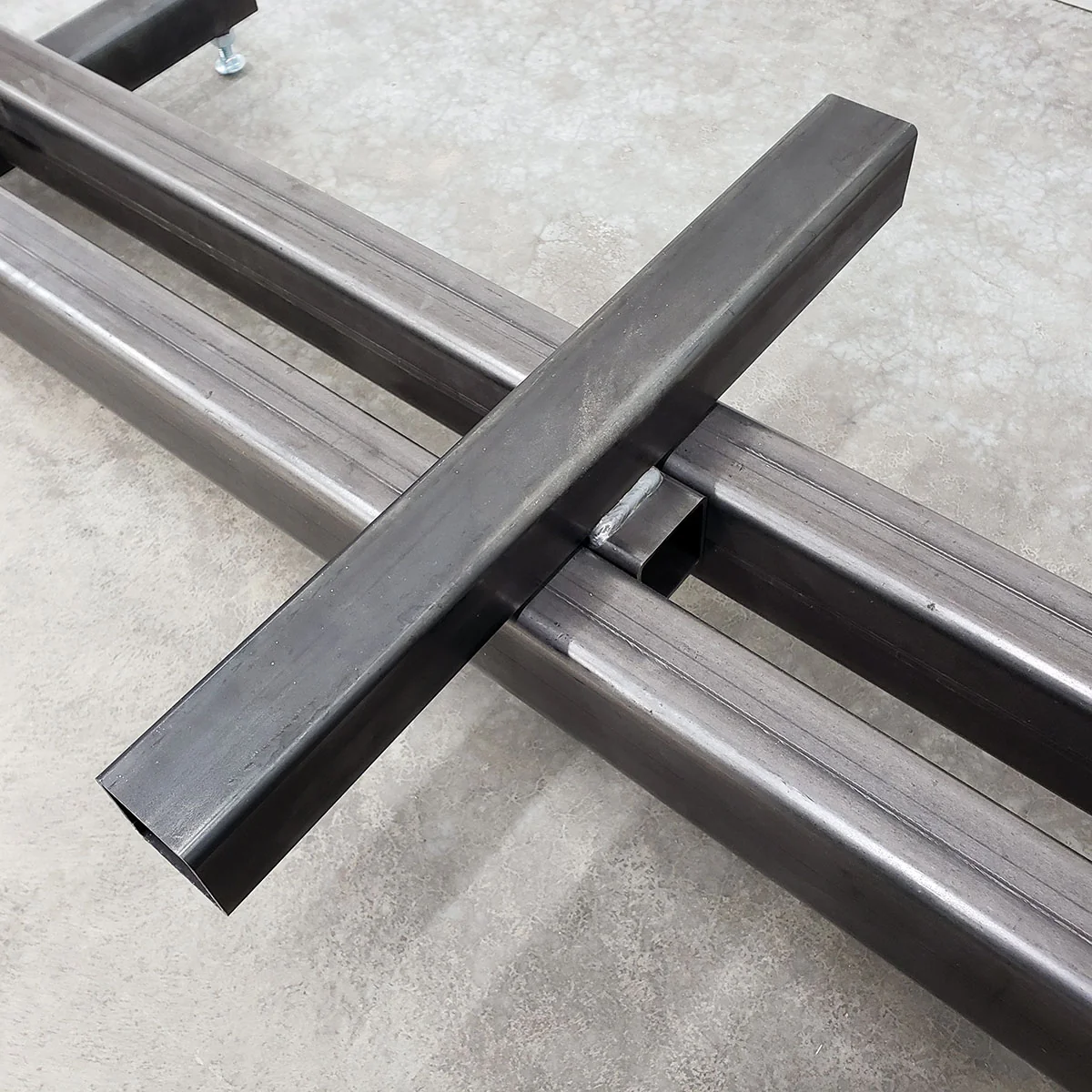

You need to supply the tubing for the fixture. For more details on the tubing required for this fixture, see the Frame Jig Plans / Assembly Instructions

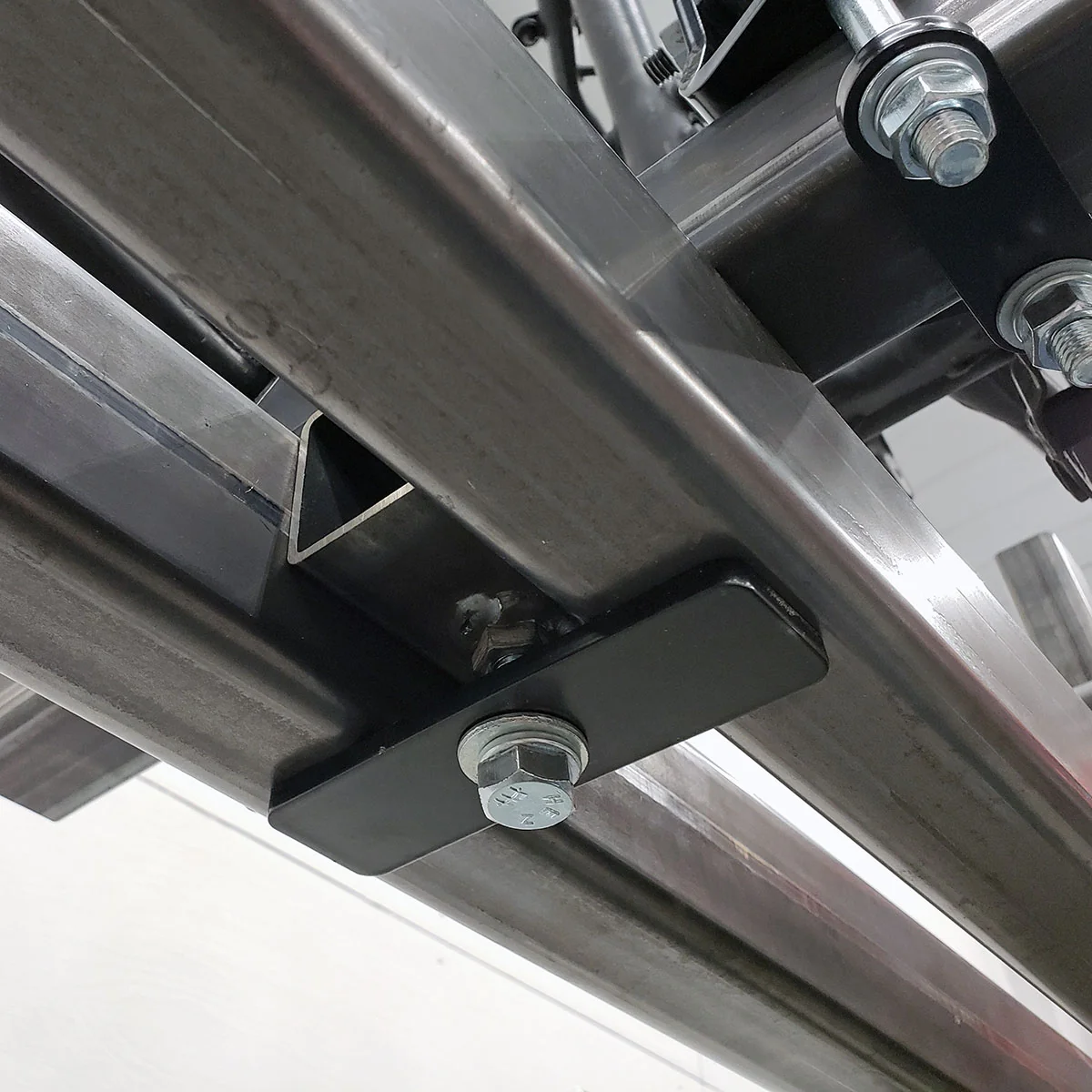

The steel plates for the adjustable width fixture are powder coated black, as shown in the first few pictures.
