Mini Bike Frame Jig Kit (Welding Jig / Fixture, Minibike)

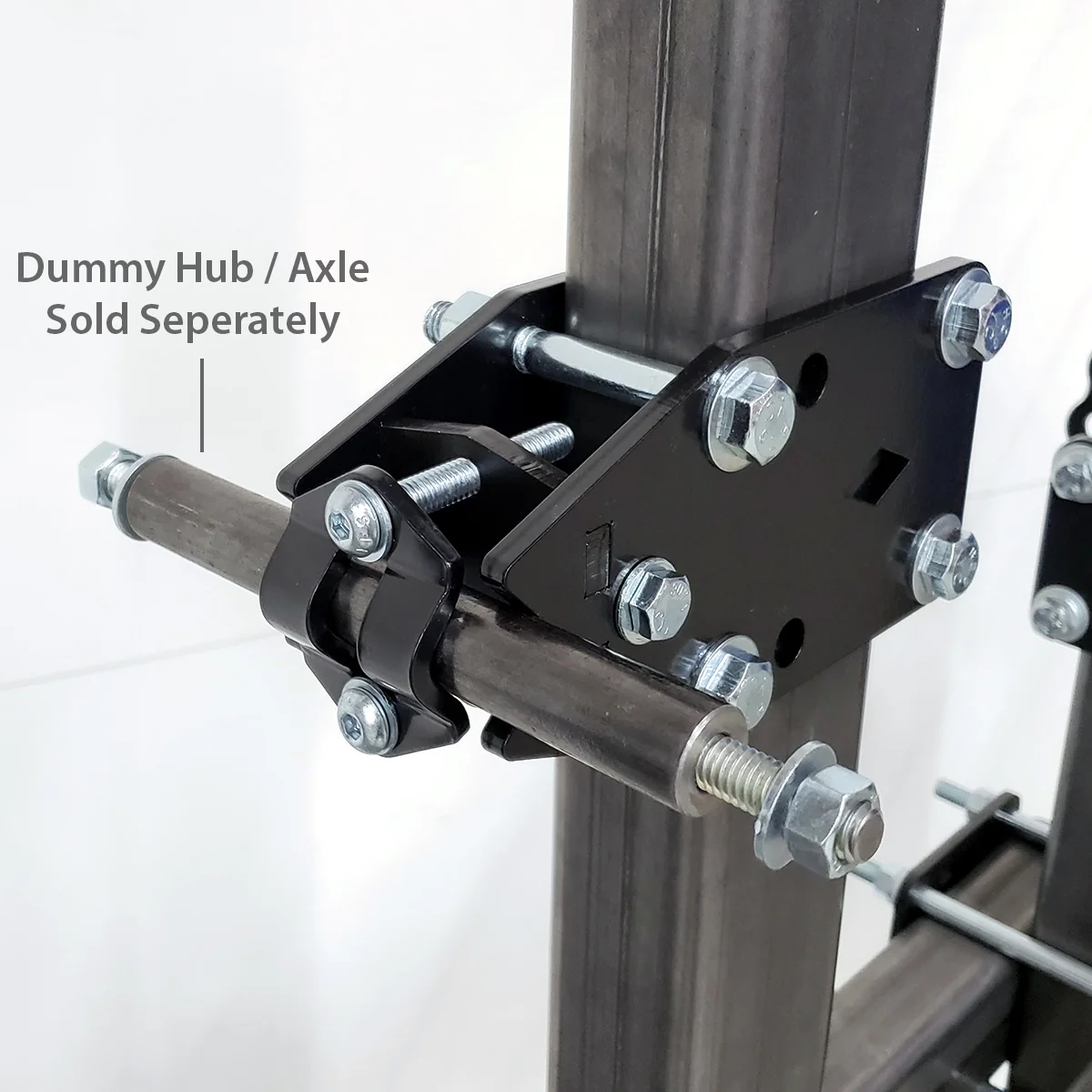

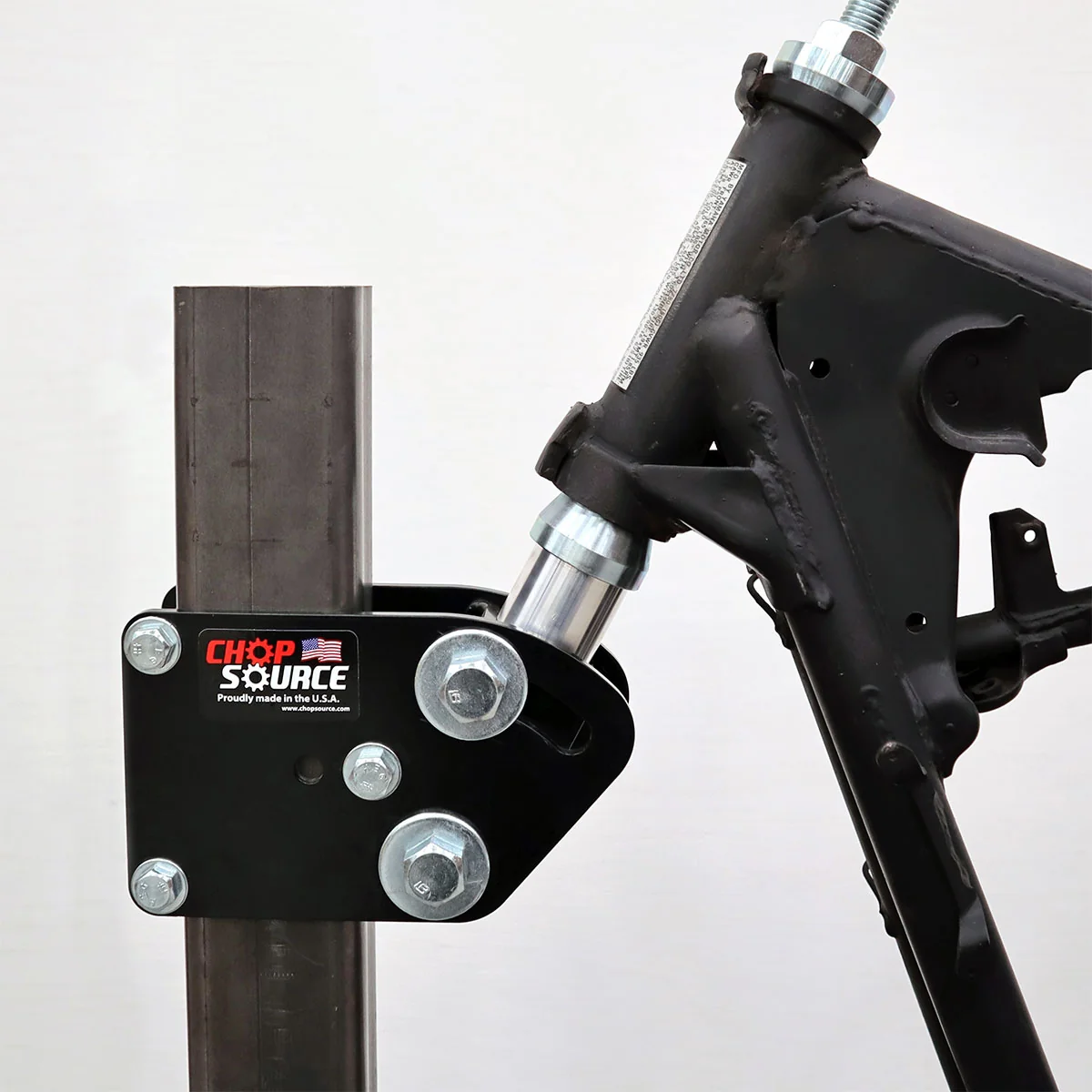

The Chop Source Mini Bike Frame Jig Kit includes all of the fixtures and hardware you need to get your mini bike frame jig (welding jig) started. You need to supply 17' of 2"x3" (1/8" wall) tubing and 6.5' of 2"x2" (1/8" wall) tubing to assemble the jig as shown. See the assembly instructions for the tubing cut list and information on using all 2"x2" or metric tubing. Structural tubing can be found at your local metal supply shop or welding/fabricating shop. The frame jig kit bolts together so you can easily reconfigure the jig or break it down to store or move. The neck fixture will accommodate rakes from 15 degrees to 60 degrees. The neck fixture was originally designed for motorcycles, and the cones taper from 2" to 7/8".  Some mini bikes have a smaller neck and won't work with this fixture and cones.  The Rear Axle Fixture can be used to hold an axle, dummy axle, or tubing from .3" to 1-1/4" in diameter.  It can also be used to directly hold a live axle.

All fixture plates in this kit are laser cut from 1/4" mild steel and are powder-coated black.

The Mini Bike Frame Jig Kit Includes:

• Neck Fixture
• 1018 Mild Steel Neck Cones (upgrade to stainless steel cones for $22 USD).
• Rear Axle Fixture
• Two Base Clamps

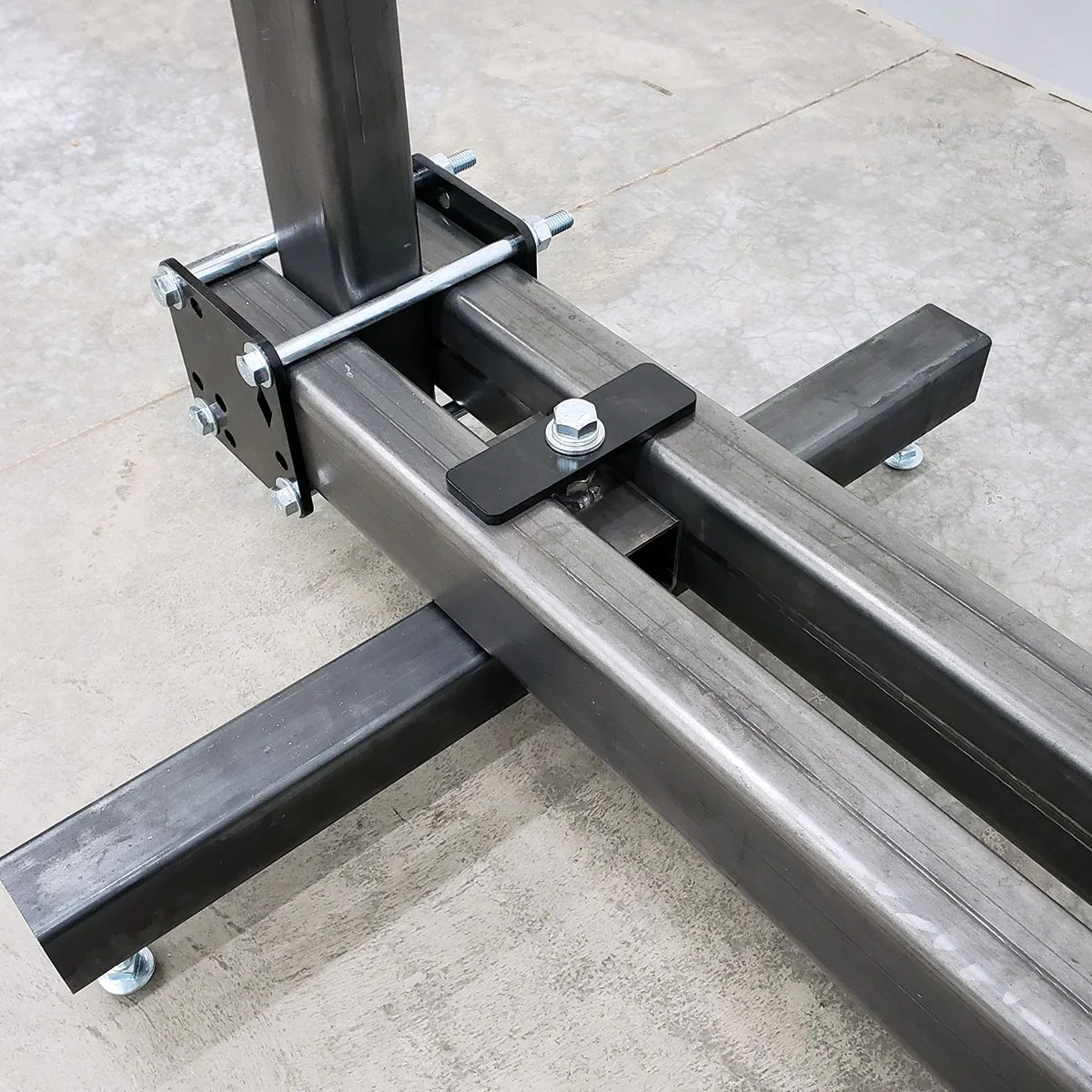

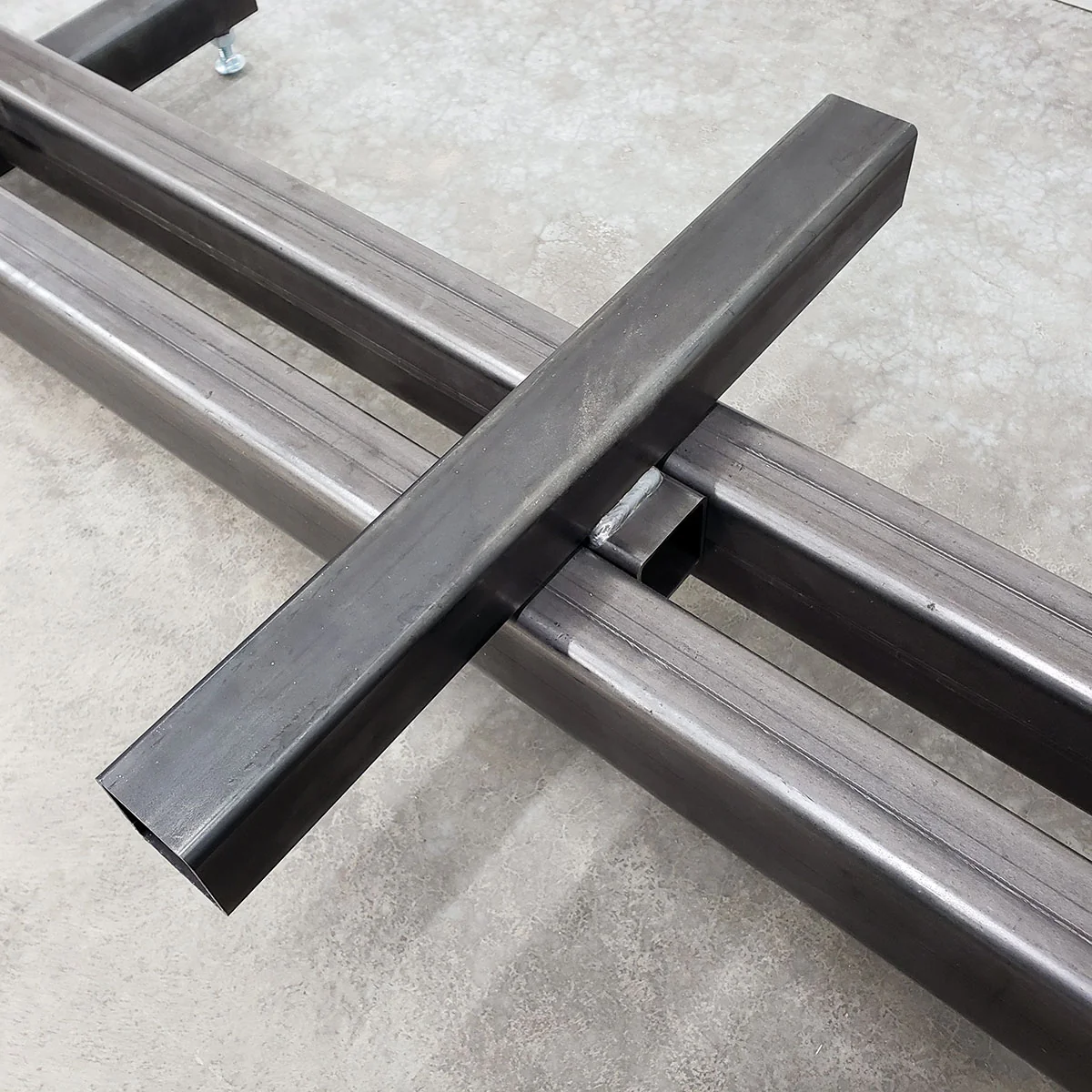

• Clamp Bar and hardware (to hold perpendicular tubing under the frame)

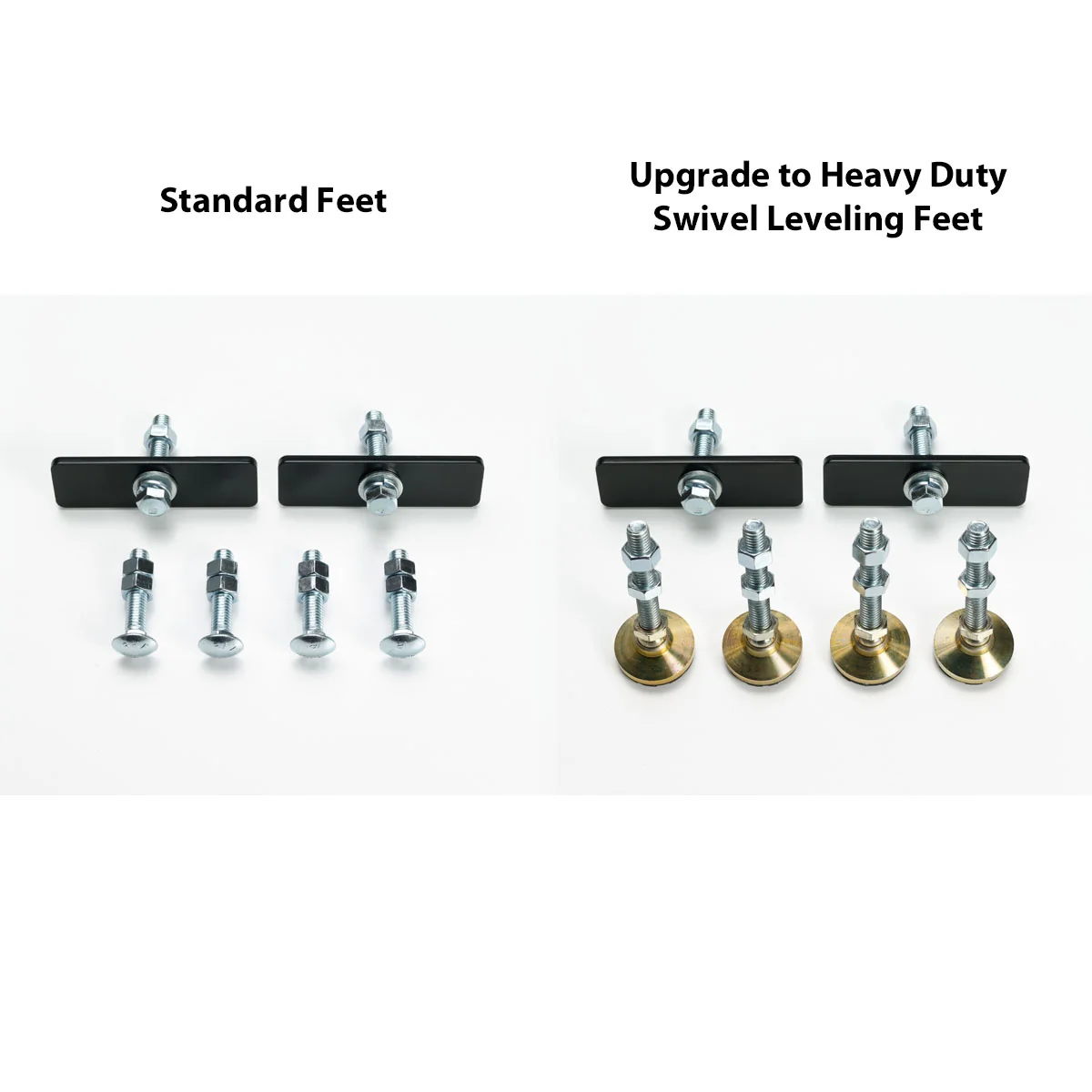

• Feet Kit (upgrade to Swivel Leveling Feet for $40 UDS)



Chop Source mini bike frame welding fixtures/jigs are adjustable and modular, and can be used to build or modify most minibike, mini tracker, and mini chopper frames. With a Chop Source mini bike frame jig kit, you can assemble your frame jig in just a couple of hours, allowing you to spend more time building frames, not welding fixtures.

MADE IN THE USA.

This item ships free to the contiguous United States! We ship worldwide frequently, but shipping costs are high because our products are very heavy. Add the items you want to the shopping cart, then enter your address at checkout to display rates.

Download the Chop Source Mini Bike Frame Jig Assembly Instructions

Motorcycle Frame Jig and Rotisserie Stand Assembly Video by Rusty Van Ranch. Not everything applies to the Mini Bike Frame Jig bundle, but it still may be helpful to watch.

Want your jig to have a dedicated stand and rotate for easier welding? Purchase the Mini Bike Frame Jig Kit (on this page) and the Frame Jig Rotisserie Stand. (frame and structural tubing not included)
